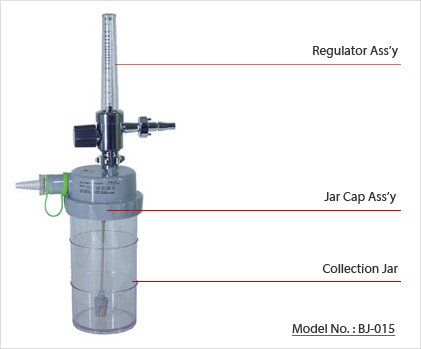

| Nebulizer (Bubble Jet Type) | ||||||||
 |
||||||||
| ※ Feature | ||||||||
| - Use Gas : Medical Oxygen (purity 99.5% or higher) - Standard Pressure : 393 kPa (4.0±0.5 kgf/㎠) - Use Pressure: 345 kPa (3.5 kgf/㎠) - Flow rate : 0~15 LPM - Humidifier (36.5℃ ): Bubble Mode 27% (10.3 mg/L), Jet Mode 41% (17.5 mg/L) - Bottle Capacity : 180 mL / Use Capacity: 100mL - Patient Tubing: I.D 3/16” to 5/16” |
||||||||
| ※ Description | ||||||||
| - Humidification of step by step selective use of bubble or aerosol
humidification possible. - High power aerosol of not heated is provide to patient for breath treatment. |
||||||||
|
||||||||
