| 각 병실에 설치하여 Secondary Device를 연결 및 “Nurse Call” 장치 뿐만 아니라 콘센트, Lamp가 포함되어 환자 개인의
편의도 제공하는 Patient Care Equipment 입니다. |
|
| |

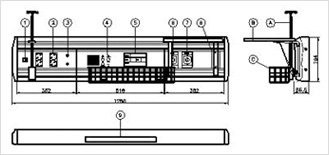

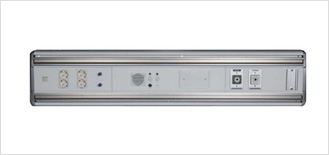

| Head Console Unit |
|
| |
| ※ Feature |
- Length and specification alteration of Head Console
according to request of customer are available.
- Length of standard : 1,280 mm
- Main Frame : Aluminum profile 3.0t anodizing finished
- Panel : Aluminum profile 2.3t baked painting
- Cover : Aluminum profile 2.3t baked painting
- Upper & Lower accessory rail (Deluxe type) |
| |
|
| NO |
DESCRIPTION |
SPECIFICATION |
Q'TY |
| 1 |
FLUORESCENT SWITCH |
S.T.D |
1 |
| 2 |
220V RECEPTACLE |
45 DUPLEX |
2 |
| 3 |
GROUND TERMINAL |
20A DUPLEX |
1 |
| 4 |
NURSE CALL SYSTEM |
OPTION |
1 |
| 5 |
NAME PLATE |
S.T.D |
1 |
| 6 |
OXYGEN GAS OUTLET |
PIN INDEX PUSH TYPE |
1 |
| 7 |
VACUUM OUTLET |
PIN INDEX PUSE TYPE |
1 |
| 8 |
SLIDE BASE |
ALUMINUM ±2.3 |
1 |
| 9 |
FLUORESCENT LAMP |
220V 20 WATT |
1 |
| A |
INFUSION PUMP HOLDER |
OPTION |
1 |
| B |
SLIDING MONITER SHELF |
OPTION |
1 |
| C |
UTILITY BASKET LARGE |
OPTION |
1 |
|
|
| |
| |
| |
|
| |
